Factory Use Dairy Centrifugal Milk Cream Separator
Automatic milk cream production disc type centrifuge separator designed for efficient dairy processing with advanced features for optimal performance.
Separator Application
With increasing demand for quality dairy products, advanced equipment like the Juneng centrifugal separator plays a crucial role in production. Our specially designed centripetal pump and inlet/outlet ports create a gentle separation environment that preserves active ingredients, maintaining nutritional value, freshness, and original flavor.
The milk cream separator is primarily used in the milk processing industry to continuously separate cream and defatted milk from whole milk while removing impurities and sediments. It also enables milk standardization based on fat content.
The Juneng separator can remove extremely small solid particles (less than 1mm) dispersed in liquid suspensions.
DHN Model (Dairy Clarification)
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 Mpa |
0.1-0.35 Mpa |
1200 kg |
1530×1150×1500 |
| DHN470 |
5000-10000 |
0.05 Mpa |
0.1-0.4 Mpa |
1600 kg |
1800×1200×1750 |
| DHN550 |
10000-20000 |
0.05 Mpa |
0.1-0.4 Mpa |
2300 kg |
1950×1550×1960 |
| DHN616 |
25000-35000 |
0.1 Mpa |
0.3 Mpa |
3000 kg |
2185×1728×2082 |
DHNZ Model (Dairy Skimming)
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension |
| DHNZ204 |
500-1000 |
0.05 Mpa |
0.1-0.2 Mpa |
520 kg |
810×850×1350 |
| DHNZ360 |
1000-3000 |
0.05 Mpa |
0.1-0.2 Mpa |
1200 kg |
1530×1150×1500 |
| DHNZ470 |
3000-7000 |
0.05 Mpa |
0.1-0.2 Mpa |
1600 kg |
1800×1200×2030 |
| DHNZ550 |
5000-10000 |
0.05 Mpa |
0.1-0.2 Mpa |
2300 kg |
1950×1550×1960 |
Separator Working Principle for Dairy Skimming
The disc separator is specially designed for two-phase and three-phase separation:
- Two-phase separation: Separates suspended solids from liquid or separates two immiscible liquids with different specific gravity
- Three-phase separation: Simultaneously separates two immiscible liquid phases and a solid phase
Separator Working Principle for Dairy Clarification
Clarification involves two-phase separation. Materials are fed into the machine's bowl, where strong centrifugal force removes impurities from raw material to produce clean milk.
Separator Advantages
- Continuous feeding
- High separation factor
- Automatic residue discharging
- CIP (Clean-in-Place) capability
- Hydraulic coupling driving with longer service life
- PLC system automatic control
- Excellent milk skimming performance
- High efficiency operation
- Lower energy consumption
- Gentle feeding/discharging through inlet/outlet ports
Separator Applications
- Hot milk separation
- Cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
Detailed Images
Parts in the Rotating Bowl Drum
All parts and components contacting materials are made of stainless steel to minimize corrosion and meet food hygiene requirements. The separator bowl undergoes precise dynamic balancing for smooth operation with low vibration and noise.
Vertical Shaft and Horizontal Shaft
All parts are made of stainless steel with high-quality machining and precision assembly.
| Material |
Super stainless steel |
| Function |
Running in high speed |
| Assembly |
Precision assembly |
| Speed |
5000-12000 RPM |

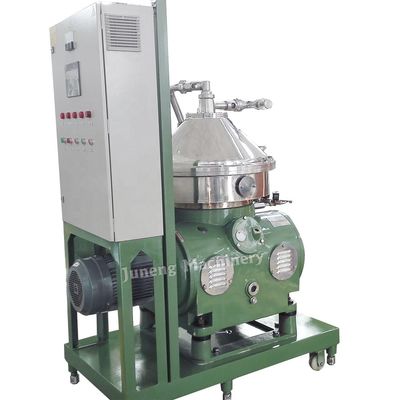

PLC Control Box
The separator features an automatic control cabinet with industrial computer and auto overload protector. This highly automated system adapts easily to process changes, requires minimal adjustment, and significantly reduces operator workload.
Product Equipment
Our company maintains a first-class laboratory for comprehensive analysis including chemical composition, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetic inspection, and ultrasonic inspection. We employ advanced instrumentation and rigorous quality control to ensure every product component is stable and reliable.
Packing & Delivery
| Packaging |
Standard wooden box (Size: L×W×H) |
| Size |
1800×1800×1800 mm (varies by model) |
| Weight |
1000kg-3000kg |
| Packaging Details |
European exports include fumigated wooden boxes. Alternative packaging (PE film) available for tight containers or special customer requests. |
Our Company
Commercial Cooperation and Exchange
Juneng focuses on international technical collaboration and commercial exchange, learning from experts in the USA, Canada, Germany, Russia, and Southeast Asia. We aim to become an industry leader in China and worldwide.
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory visits available
After-Sales Service
- Installation and operation training
- Overseas engineer support available
Certifications
Our Honors
FAQ
Q: How can we visit your factory?
A: International visitors can fly to Shanghai airport where we provide pickup service. Domestic visitors can travel directly to Wuxi station by air or train for pickup.
Q: How do you ensure product quality?
A: As a state-owned enterprise with 30+ years experience, we implement strict quality control using advanced machinery, licensed operators, international brand components, and comprehensive testing throughout production.
Q: What payment methods do you accept?
A: We primarily accept T/T and L/C at sight, though other methods may be available.
Q: What is your warranty period?
A: We offer a 12-month warranty after commissioning.
Q: How can I trust your company as a new customer?
A: We've been a Golden Supplier on Alibaba for 10+ years with CE, ISO9001, and Alibaba onsite check certifications. Our Trade Assurance Limit is US$42,000 and growing.
Q: What are your shipment terms and delivery time?
A: Standard delivery is 20 days (30 days for customized machines), depending on order quantity.
Q: Do you offer discounts?
A: We strive to provide competitive pricing and excellent service for all customers.
