Solid Holding Whey Skimming Milk Cream Centrifuge Separator
High efficiency fat centrifuge separator designed for skim milk processing facilities, delivering superior performance in dairy separation applications.
Separator Application
As consumer demand for quality dairy products continues to grow, advanced processing equipment becomes increasingly essential. Juneng centrifugal separators feature specially designed centripetal pumps and inlet/outlet ports that create a gentle separation environment, preserving active ingredients while maintaining nutritional value, freshness, and original flavor.
Our milk cream separator is primarily used in the dairy processing industry for continuous separation of cream and defatted milk from pure milk, while simultaneously removing impurities and sediments. The system also enables milk standardization based on fat content requirements.
Juneng separators effectively separate extremely small solid particles (as small as 1mm) dispersed in suspensions from the liquid phase.
DHN Model - Dairy Clarification
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension (mm) |
| DHN360 |
2000-5000 |
0.05 Mpa |
0.1-0.35 Mpa |
1200 kg |
1530×1150×1500 |
| DHN470 |
5000-10000 |
0.05 Mpa |
0.1-0.4 Mpa |
1600 kg |
1800×1200×1750 |
| DHN550 |
10000-20000 |
0.05 Mpa |
0.1-0.4 Mpa |
2300 kg |
1950×1550×1960 |
| DHN616 |
25000-35000 |
0.1 Mpa |
0.3 Mpa |
3000 kg |
2185×1728×2082 |
DHNZ Model - Dairy Skimming
| Model |
Capacity (L/H) |
Inlet Pressure |
Outlet Pressure |
Weight |
Dimension |
| DHNZ204 |
500-1000 |
0.05 Mpa |
0.1-0.2 Mpa |
520 kg |
810×850×1350 |
| DHNZ360 |
1000-3000 |
0.05 Mpa |
0.1-0.2 Mpa |
1200 kg |
1530×1150×1500 |
| DHNZ470 |
3000-7000 |
0.05 Mpa |
0.1-0.2 Mpa |
1600 kg |
1800×1200×2030 |
| DHNZ550 |
5000-10000 |
0.05 Mpa |
0.1-0.2 Mpa |
2300 kg |
1950×1550×1960 |
Working Principle for Dairy Skimming
The disc separator is specifically designed for two-phase and three-phase separation processes. Two-phase separation involves separating suspended solids from liquids or separating two immiscible liquids with different specific gravities. Three-phase separation simultaneously separates two immiscible liquid phases and a solid phase.
Working Principle for Dairy Clarification
Clarification involves two-phase separation where materials are fed into the central part of the machine bowl. Under strong centrifugal force, impurities are removed from raw materials to produce clean, clarified milk.
Separator Advantages
- Continuous feeding operation
- High separation factor for superior performance
- Automatic residue discharging system
- CIP (Clean-in-Place) capability
- Hydraulic coupling driving for extended service life
- PLC system automatic control
- Excellent milk skimming performance
- High operational efficiency
- Lower energy consumption
- Gentle feeding and discharging through optimized inlet/outlet design
Separator Applications
- Hot milk separation
- Cold milk separation
- Whey protein separation
- Buttermilk separation
- Dairy whey clarification
- Disinfection of dairy products
- Casein processing
- Syrup clarification
- Vegetable juice clarification
- Tea drinks, coffee, beer and other liquid clarification
Detailed Equipment Images

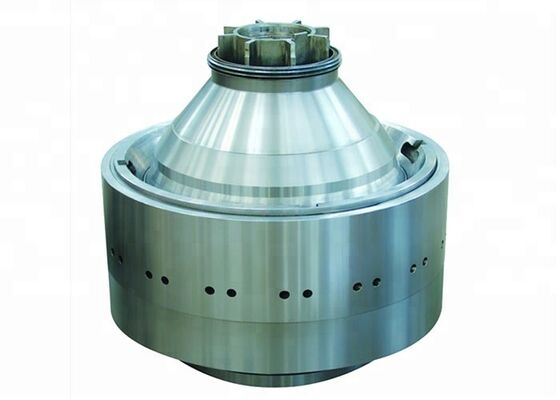

Rotating Bowl Drum Components
All parts and components contacting materials are manufactured from stainless steel, effectively minimizing corrosion from separated materials while meeting strict hygienic requirements for food processing applications.
The separator bowl undergoes precise dynamic balancing, ensuring stable operation with minimal vibration and noise during processing.
Vertical and Horizontal Shaft Assembly
All components are constructed from super stainless steel and feature high-quality machining with precision assembly. Operating speeds range from 5000-12000 RPM for optimal separation performance.
| Material |
Super stainless steel |
| Function |
High-speed operation |
| Assembly |
Precision assembly |
| Speed |
5000-12000 RPM |

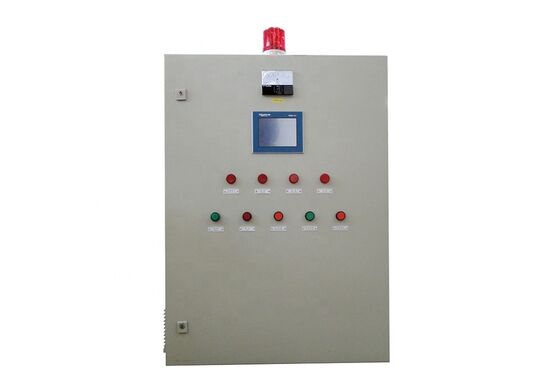

PLC Control System
The separator is equipped with an advanced automatic control cabinet featuring industrial computer systems and automatic overload protection. This highly automated system provides excellent adaptability to process changes, easy adjustment capabilities, and significantly reduces operational labor requirements.
Quality Assurance
Our company maintains a first-class laboratory equipped for comprehensive analysis including chemical composition, metallographic analysis, spectrum analysis, performance testing, radiographic inspection, magnetic inspection, and ultrasonic inspection. We employ advanced instrumentation and rigorous working standards to ensure every component meets stability and reliability requirements.
